Hydraulic Press Brake Machine Manufaturer in Ahmedabad | Power Press Machine Manufacturing in Gujarat, India

A press brake is a machine pressing tool for bending sheet and plate material, most commonly sheet metal machinery. It forms predetermined bends by clamping the workpiece between a matching punch and die.

Typically, two C-frames form the sides of the press brake, connected to a table at the bottom and on a movable beam at the top. The bottom tool is mounted on the table, with the top tool mounted on the upper beam.

Viraat Industries is leading Press Brake Machine manufaturer & supplier in Ahmedabad, Gujarat, India.

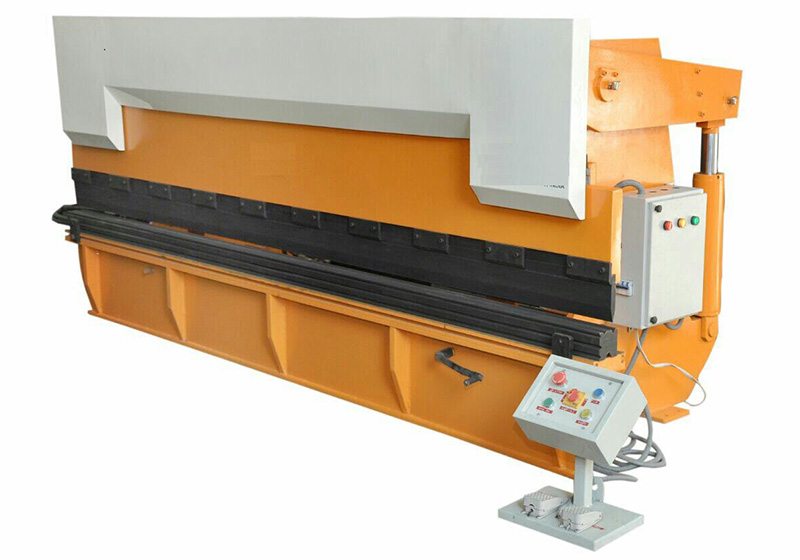

Manual Sheet Bending Machine

The frame is entirely welded with steel plates and treated to relive street by tempering, so the precision is well maintained hydraulic top drive steeples pressure adjustment and high quality sealing rings imported from overseas to ensure the machine tools relic ability mechanical synchronous mechanism and the complex compensation are designed so as to raise the work pieces precision.

the stroke and distance of the back gage is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by digital meters Inch, single continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays safe fence and the electric interlocker have bend designed for the machine to ensure the operation safely

Technical Specification

Sheet Folding Machine

A folding machine is a machine used primarily for the folding of paper. Paper can be folded with either a buckle or a knife; thus, there are generally three types of folding machines: buckle folders, knife folders or a combination of these two types. Whilst buckle folding is the more popular of the two methods, knife folding is sometimes preferable. Folding machine models vary in sophistication, with high-end machines capable of processing more complex folding jobs and unusual paper forms (in terms of density and size).Organizations required to undertake mass mail-out campaigns often employ folding machines to improve efficiency

Technical Specification

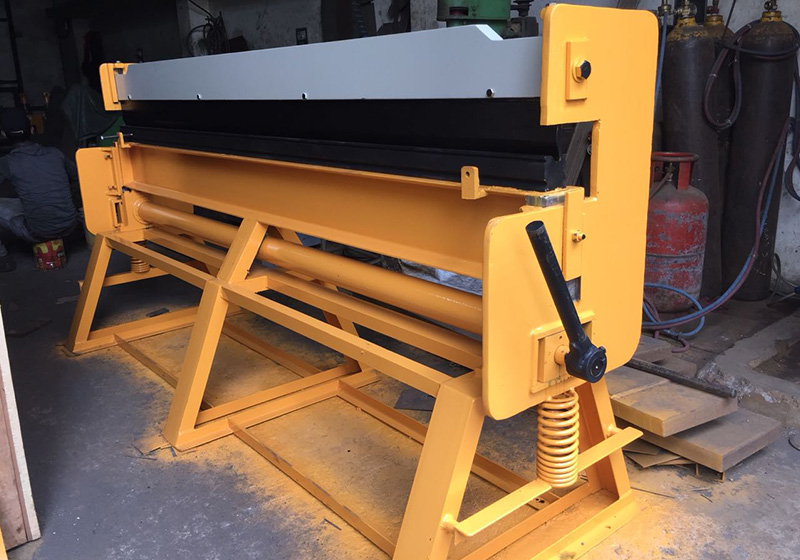

Hydraulic Hand Liver Operated Sheet Bending Machine

Cuts sheet metal furniture parts to shape with hand-operated bench shears: ... BENDER, MACHINE (paper goods) 641.885. Bending machine operator. ... Moves lever or depresses button to raise hydraulic lift under molds or to close platens. ... Quantity of add into vessel and starts agitator to mix contents for specified time.

Technical Specification

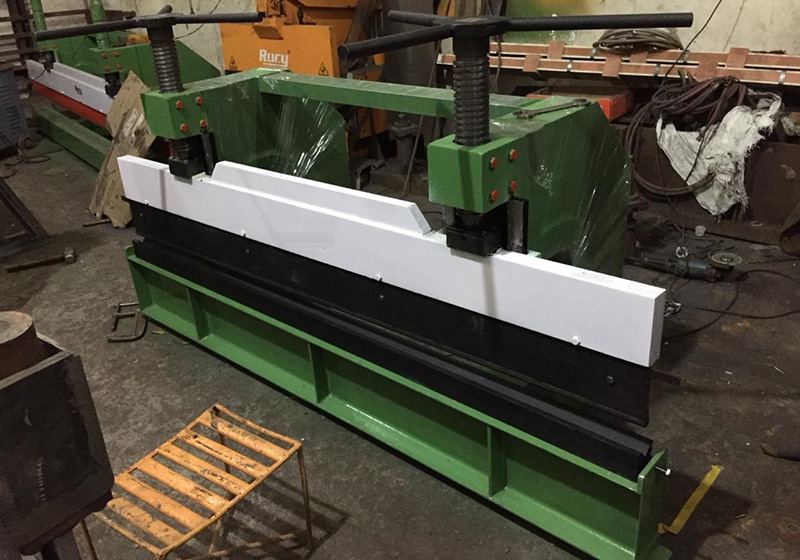

Mini Hydraulic Press Brake machine

Our product range includes a wide range of Mini Hydraulic Power Press Brake Machine 2030X1.5 mm MS, 2030 x 2mm MS Bending Mini Hydraulic Press Brake Machine, 2540 x 2mm MS Sheet Bending Mini Hydraulic Press Brake Machine, 2540 x 2mm Truck Body Hydraulic Press Brake Machine, Almirah Making Mini Hydraulic Press and 1270x3 mm MS Bending Mini Hydraulic Press Brake Machine.

Technical Specification

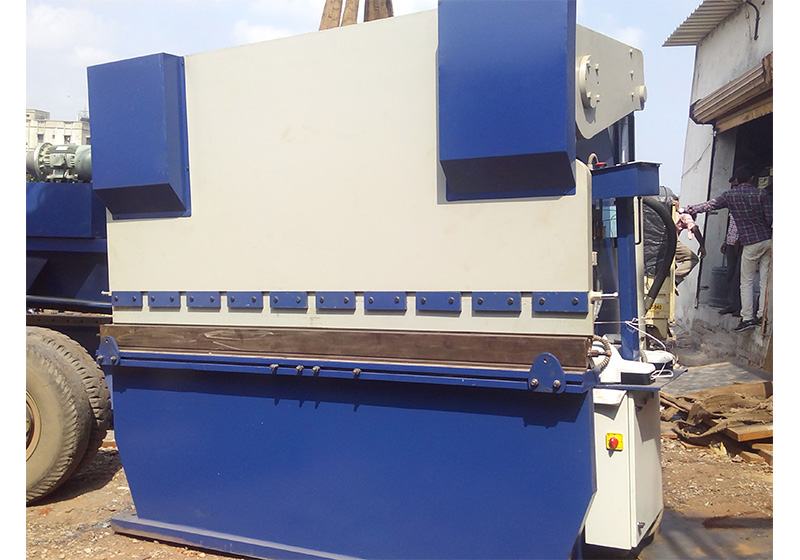

Hydraulic Press Brake Machine

Hydraulic Press Brake Machine is a resultant display of our experienced R & D team and industrious approach for making customized customer-oriented and operator-friendly machines. This machine can be operated for multiple tasks at a time. The feature of programmable bend

Technical Specification

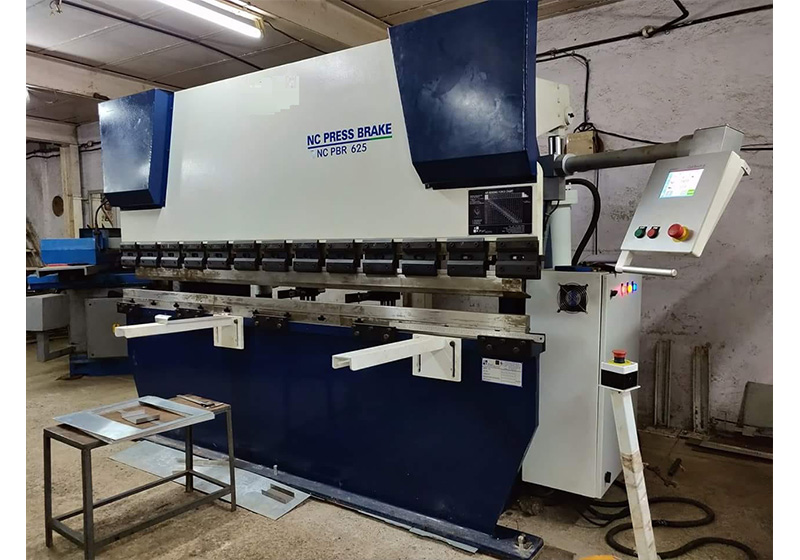

NC Controll Hydraulic Press Brake Machine

NC Hydraulic Press Brake features a proven, up-stroking beam system can help to reducing operator fatigue.

The beam system consists of a thick, rugged beam that moves between extra heavy side frames (uprights). A massive steel torsion shaft is used to maintain ram parallelism until the mechanical stops are engaged and lower dead bottom is reached. Mechanical depth stops ensure constant beam penetration accuracy. This system eliminates the need for sophisticated and high-maintenance hydraulic proportional valves, steel tapes, and micro switches.

Technical Specification

Model	Tonnage	Table Length	Bending Capacity		Table width	Clear Pass	Ram Stroke	Open Height	Throat Depth	Approach Pressing Return Speed	Power	Packing Dimension
Model	in MT	in mm	in mm	in mm	in mm	in mm	in mm	in mm	in mm		HP	( LxWxH)
VI-PBR 215	20	1500	1.6x1500	2x1250	125	1050	100	250	100	35-9-35	3	1700X1050X1900
VI-PBR 320	30	2000	2x2000	3x1250	125	1550	100	250	200	30-7-40	3	2200X1150X1900
VI-PBR 420	40	2000	2.5x2000	3x1500	180	1550	100	250	200	40-6-45	5	2200X1150X1800
VI-PBR 425	40	2500	2x2500	3x1500	180	2050	100	250	200	40-6-45	5	2700X1150X1900
VI-PBR 430	40	3000	1.6x3000	3x1500	180	2550	100	250	200	40-6-45	5	3200X150X2000
VI-PBR 515	50	1500	4x1500	5x1250	180	1050	100	250	200	35-6-40	5	1700X1150X1900
VI-PBR 520	50	2000	3x2000	4x1500	180	1550	100	250	200	35-6-40	5	2200X1150X1900
VI-PBR 525	50	2500	2.5x2500	3x2000	180	2050	100	250	200	35-6-40	5	2700X1150X1900
VI-PBR 530	50	3000	2x3000	2.5x2500	180	2550	100	250	200	35-6-40	5	3200X1150X2000
VI-PBR 540	50	4000	1.6x4000	2x3000	180	3100	100	250	200	35-6-40	5	4200X1250X2300
VI-PBR 625	65	2500	3x2500	4x2000	180	2050	150	330	200	35-5-40	5	270pX1200X2000
VI-PBR 630	65	3000	2.5x3000	3x2500	180	2550	150	330	200	35-5-40	5	3200X1200X2000
VI-PBR 640	65	4000	2x4000	2.5x3000	180	3100	150	330	200	35-5-40	5	4200X1250X2400
VI-PBR 820	80	2000	5x2000	6x1500	180	5100	150	330	200	40-6-45	7.5	2200X1550X2100
VI-PBR 825	80	2500	4x2500	5x2000	180	2050	150	330	200	40-6-45	7.5	2750X1550X2300
VI-PBR 830	80	3000	3x3000	4x2500	180	2550	150	330	200	40-6-45	7.5	3250X1550X2300
VI-PBR 840	80	4000	2.5x4000	3x3000	180	3100	150	330	200	40-6-45	7.5	4250X1650X2500
VI-PBR 850	80	5000	2x5000	2.5x4000	180	4100	150	330	200	40-6-45	7.5	5300X1650X2700
VI-PBR 860	80	6000	1.6x6000	2x5000	180	5100	150	330	200	40-6-45	7.5	6300X1750X2800
VI-PBR 1025	100	2500	5x2500	6x2000	180	2050	150	330	200	43-6-48	10	2700X1550X2300
VI-PBR 1030	100	3000	4x3000	5x2500	180	2550	150	330	200	43-6-48	10	3250X1550X2300
VI-PBR 1040	100	4000	3x4000	4x3000	180	3100	150	330	200	43-6-48	10	4250X1650X2500
VI-PBR 1050	100	5000	2.5x5000	3x4000	180	4100	150	330	200	43-6-48	10	5300X1700X2800
VI-PBR 1060	100	6000	2x6000	2.5x5000	180	5100	150	330	200	43-6-48	10	6300X1750X2900
VI-PBR 1225	125	2500	6x2500	8x2000	230	2050	150	350	300	40-6-50	15	2750X1650X2700
VI-PBR 1230	125	3000	5x3000	6x2500	230	2550	150	350	300	40-6-50	15	3250X1650X2500
VI-PBR 1240	125	4000	4x3500	5x3000	230	3100	150	350	300	40-6-50	15	4250X1650X2600
VI-PBR 1250	125	5000	3x5000	4x4000	230	4100	150	350	300	40-6-50	15	5300X1750X2900
VI-PBR 1260	125	6000	2.5x6000	3x5000	230	5100	150	350	300	40-6-50	15	6300X1800X3000
VI-PBR 1625	160	2500	8x2500	10x2000	230	2050	150	350	300	35-6-45	15	2750X1800X2500
VI-PBR 1630	160	3000	6x3000	8x2500	230	2550	150	350	300	35-6-45	15	3250X1800X2600
VI-PBR 1640	160	4000	5x4000	6x3000	230	3100	150	350	300	35-6-45	15	4300X1800X2700
VI-PBR 1650	160	5000	4x5000	5x4000	230	4100	150	350	300	35-6-45	15	5300X1850X3000
VI-PBR 1660	160	6000	3x6000	4x5000	230	5100	150	350	300	35-6-45	15	6300X1900X3200
VI-PBR 2025	200	2500	10x2500	12x2000	230	2050	200	400	300	35-6-48	20	2850X1900X2600
VI-PBR 2030	200	3000	8x3000	10x2500	230	2550	200	400	300	35-6-48	20	3350X2050X2750
VI-PBR 2040	200	4000	6x4000	8x3000	230	3100	200	400	300	35-6-48	20	4350X2050X2800
VI-PBR 2050	200	5000	5x5000	6x4000	230	4100	200	400	300	35-6-48	20	5350X2100X3100
VI-PBR 2060	200	6000	4x6000	5x5000	230	5100	200	400	300	35-6-48	20	6350X2200X3500
VI-PBR 2530	250	3000	10x3000	12x2500	300	2550	200	400	300	30-5-40	20	3350X2100X2800
VI-PBR 2540	250	4000	8x4000	10x3000	300	3100	200	400	300	30-5-40	20	4350X2000X2900
VI-PBR 2550	250	5000	6x5000	5x4000	300	4100	200	400	300	30-5-40	20	5350X2150X3200
VI-PBR 2560	250	6000	5x6000	6x5000	300	5100	200	400	300	30-5-40	20	6350X2250X3600
VI-PBR 3030	300	3000	12x3000	15x2500	300	2550	200	400	300	30-5-40	25	3350X2150X2900
VI-PBR 3040	300	4000	10x3500	12x3000	300	3100	200	400	300	30-5-40	25	4350X2150X2900
VI-PBR 3050	300	5000	7x5000	9x4000	300	4100	200	400	300	30-5-40	25	5350X2200X3400
VI-PBR 3060	300	6000	6x6000	7x5000	300	5100	200	400	300	30-5-40	25	6350X2300X3800
VI-PBR 4030	400	3000	16x3000	20x2500	300	2550	250	500	350	25-5-30	30	3350X2200X3000
VI-PBR 4040	400	4000	12x4000	16x3000	300	3100	250	500	350	25-5-30	30	4350X2200X3000
VI-PBR 4050	400	5000	10x5000	12x4000	300	4100	250	500	350	25-5-30	30	5350X2250X3600
VI-PBR 4060	400	6000	8x6000	10x5000	300	5100	250	500	350	25-5-30	30	6350X2350X4000
VI-PBR 5030	500	3000	20x3000	25x2500	300	2550	250	500	350	25-5-30	40	3350X2200X3200
VI-PBR 5040	500	4000	15x4000	20x3000	300	3100	250	500	350	25-5-30	40	4500X2200X330
VI-PBR 5050	500	5000	14x5000	15x4000	300	4100	250	500	350	25-5-30	40	5350X2400X3900
VI-PBR 5060	500	6000	11x6000	14x5000	300	5100	250	500	350	25-5-30	40	6350X2500X4250
VI-PBR 6030	600	3000	25x3000	30x2500	300	2550	250	500	350	25-5-30	50	3350X2200X3300
VI-PBR 6040	600	4000	18x4000	25x3000	300	3100	250	500	350	25-5-30	50	4500X2200X3500
VI-PBR 6050	600	5000	15x5000	18x4000	300	4100	250	500	350	25-5-30	50	5350X2300X3700
VI-PBR 6060	600	6000	12x6000	15x5000	300	5100	250	500	350	25-5-30	50	6350X2600X4350
